| หมวดหมู่ | - |
| รหัสสินค้า | neocoat-intumescent-paint-s |

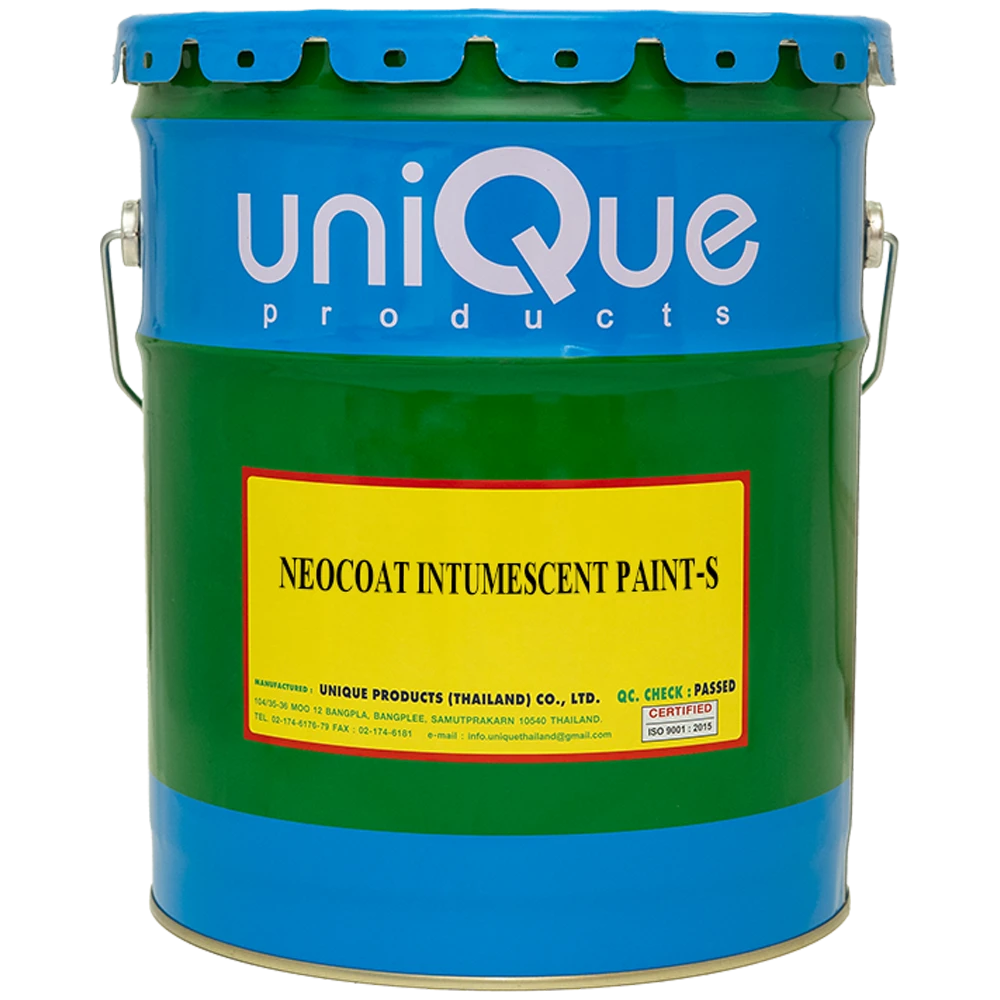

Neocoat intumescent - S is a solvent base fire retard coating . It 's dries quickly . Upon exposure to fire or excessive heat, the coating puffs up and forms a thick, dense, cellularform to have required fire protection on structural steel.
Surface preparation
The steel surface to ensure it is free from oil, grease, rust, salts,
dust, and other contaminants that may affect paint adhesion.
Degreesing
Clean the surface using suitable solvents or industrial degreasers
to remove all traces of oil and grease. Wipe down with clean rags
soaked in thinner if necessary.
Rust removal
Perform abrasive blasting to achieve ISO 8501-1 Sa 2.5 or SSPC-
SP 10 (Near White Metal Blast Cleaning) for optimal cleanliness.
If blasting is not possible, use mechanical cleaning tools (e.g.,
wire brushing, grinding) to meet ISO 8501-1 St 3 (Very Thorough
Manual Cleaning).
Painting System (Enamel)
Primer Coat | NEOCOAT PRIMER
Fireproof Coat | NEOCOAT INTUMESCENT PAINT - S
Topcoat | NEOGLOSS ENAMEL COLOR
Painting System (Epoxy)
Primer Coat | SUPERGUARD ZINC H / SUPERGUARD HB-SS /
SUPERGUARD COLOUR -SS
Fireproof Coat | NEOCOAT INTUMESCENT PAINT - S
Topcoat | SUPERGUARD FX-G COLOR (Interior)
SUPERGUARD PU 777 COLOR (Exterior)
Recommendation | The surface to be painted should have a temperature between
10–50°C, and the relative humidity should not exceed 85%.
| Type | Acrylic Solvent Base Fireproofing |
| Color | White / Grey |
| Film Appearance | Matt |
| Solid Content (%) | 76±2 |
| Specific Gravity | 1.41 - 1.43 |
| Wet Film Thickness | 500 microns |
| Dry Film Thickness | 250 microns |
| Recommended Thickness | 500 microns Dft. |
| Theoretical Coverage | 1 sqm. / kg @ 500 microns |
| Touch Dry (25-30 °C) | 1-2 hours. |
| Recoat Dry (25-30 °C) | 4 hours. |
| Hard Dry (25-30 °C) | 72 hours. |
